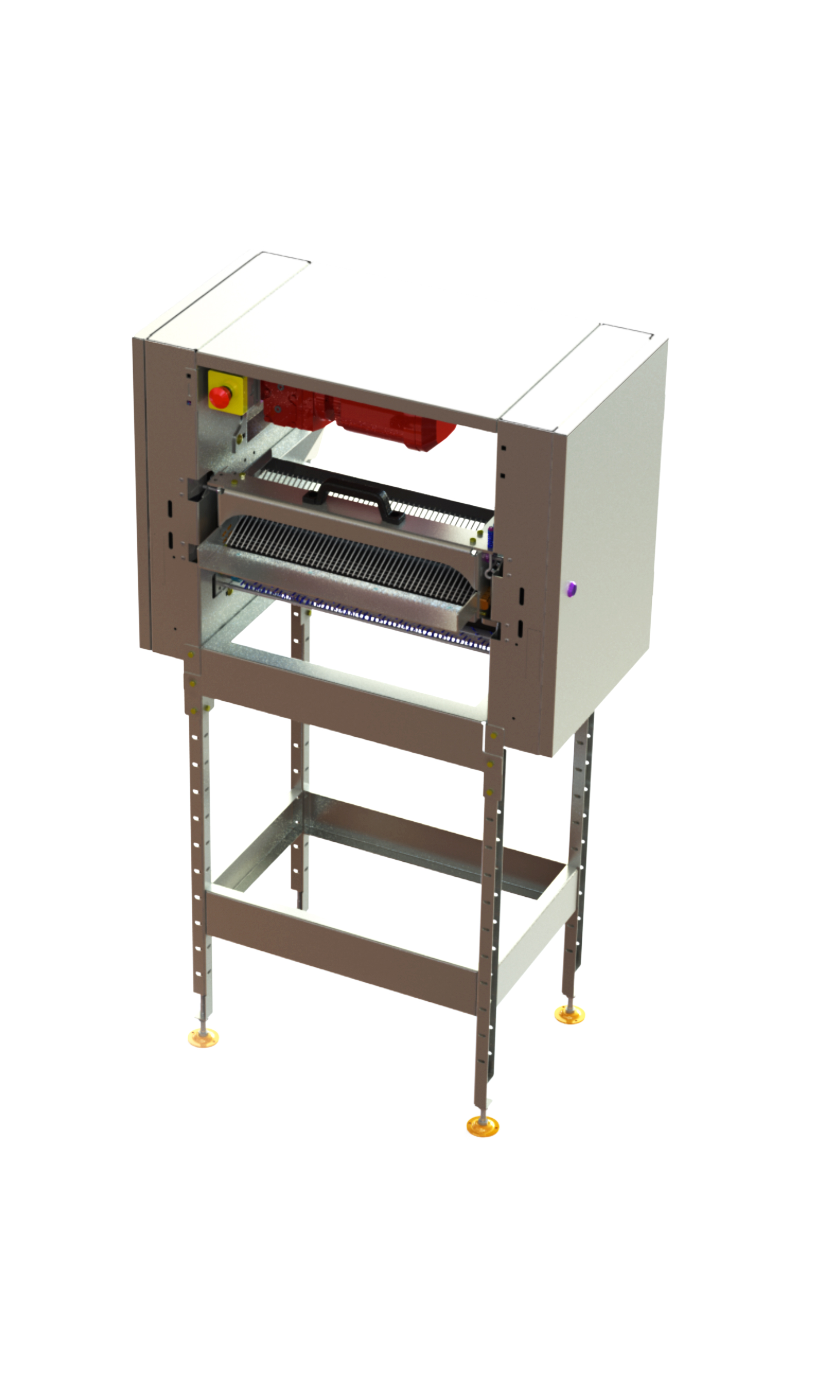

EggTrax & EggTrax Ultra
Reinforced egg belt drives for smooth transfer of eggs

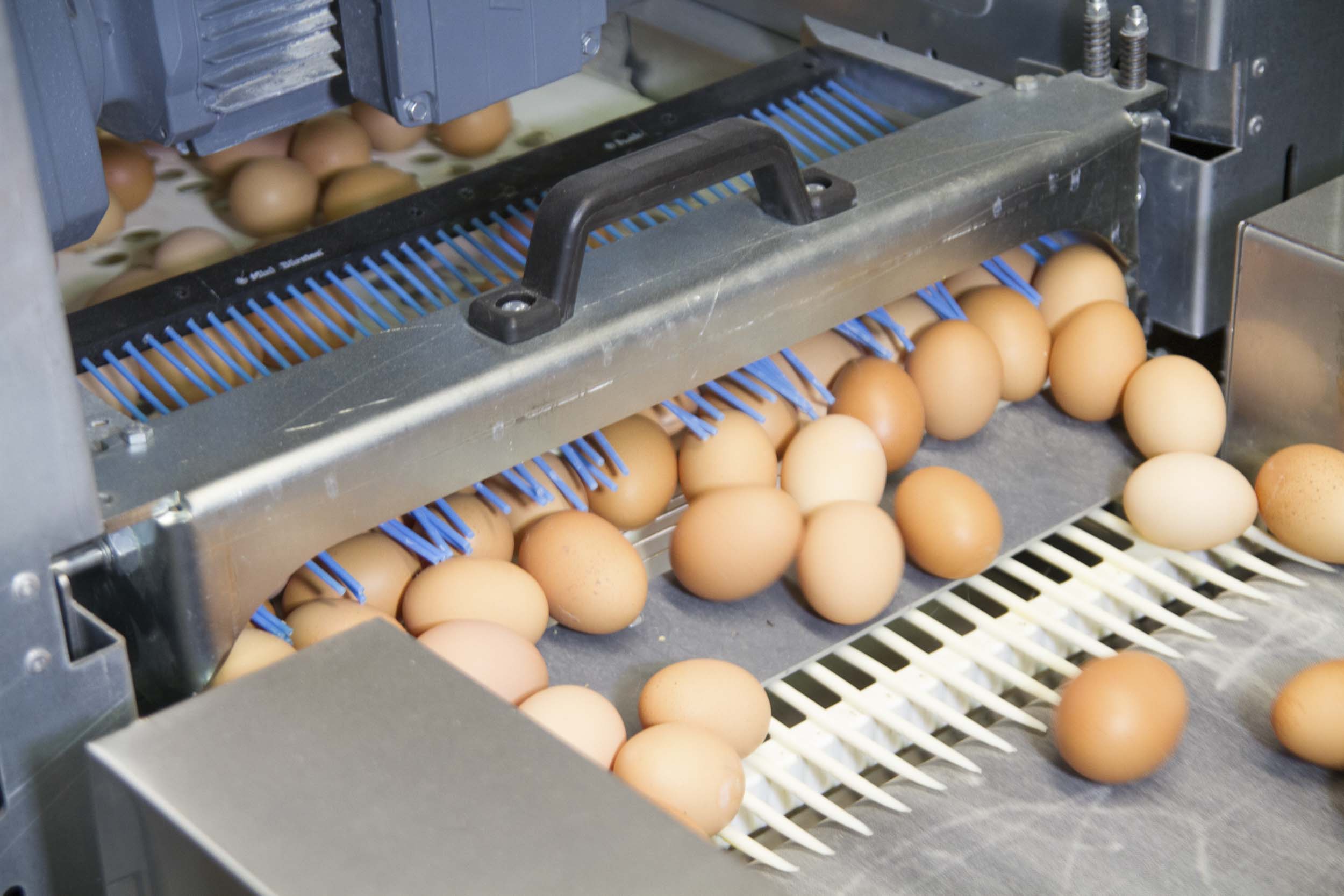

The EggTrax and EggTrax Ultra egg handling systems are used to transfer eggs from the longitudinal house egg belt to their next destination for packing. They ensure a simple, safe and smooth transfer of eggs for maximum quality control. Adjustable wire threads and anti-crack fingers are just a few of the advantageous features of these proven systems.
EggTrax Advantages

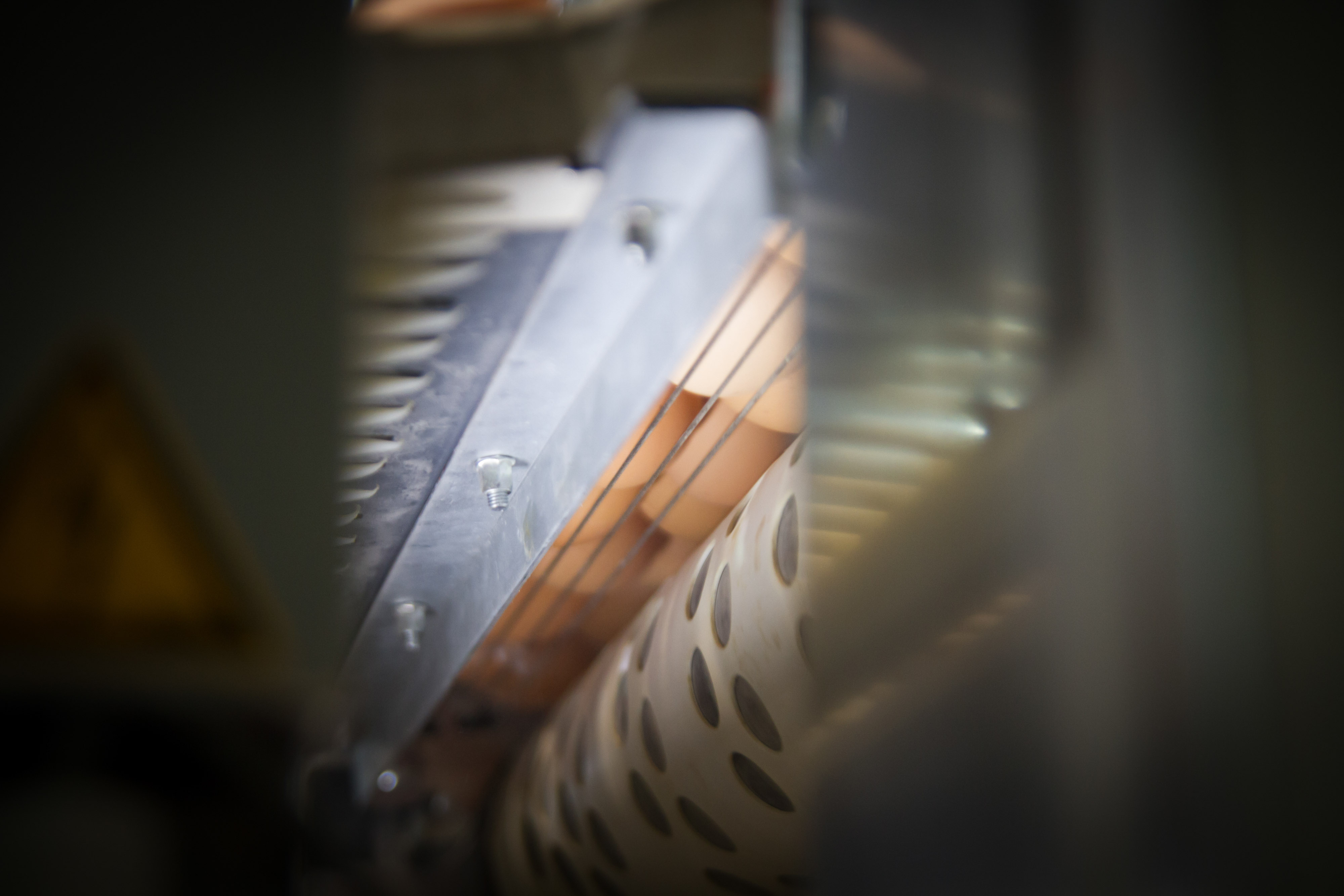

- Tension adjustable wire threads (optional) ensure a smooth transfer of the eggs while simultaneously allowing feathers, dust, and eggs without shell to fall down between the threads
- Anti-crack fingers provide a light pressure on the eggs, ensuring a controlled transfer to the cross belt
- An integrated egg belt brush cleans the belts
- Transfer of the eggs onto a rod or steep conveyor is optional
- The unit can be removed single-handedly, facilitating cleaning with a high-pressure cleaner
- Standard conveying speed 13.1 ft. per minute
- Drive width 6.95″, 13.78″, 19.69″
Previous
Next
Previous
Next
EggTrax Ultra Advantages
- Designed for gentle transfer of eggs
- Conveying speeds available up to 24.6ft (7.5m) per minute
- Powerful motor handles long nest rows (525-689ft or 160-210m) and heavier egg loads
- Utilizes a 1.6mm egg belt for high durability
- Dual chain/sprocket drive system
- Includes features for easy maintenance and cleaning
